McCulloch 100 Series & 160S
McCulloch 100 Series & 160S

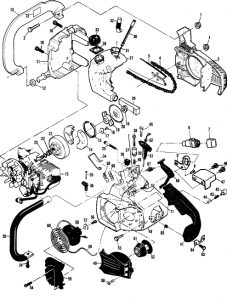

General Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 110676 | Nut-Hex Head 1/4-28 (65-75 in. lb. torque) | ||
| 2 | 110972 | Screw-Hex 1/4-28x3/4 | ||
| 3 | Chain Brake Assembly | |||
| 4 | Saw Chain | |||
| 5 | Guide Bar | |||
| 6 | 218886 | Grinder Assembly | Used on units equipped with Auto Sharp | |
| 7 | 215447 | Knob - Auto-Sharp | Used on units equipped with Auto Sharp | |
| 8 | 110583 | Screw-Pn Hd 8-32 x 44 (35-40 in. lb. torque) | Used on units equipped with Auto Sharp | |
| 9 | 215209 | Bracket - Auto-Sharp | Used on units equipped with Auto Sharp | |
| 10 | 110639 | Screw-Hex Hd 12-24 x 1 (55-60 in. lb. torque) | ||
| 11 | 218867 | Cover-Fuel/ Oil Tank | ||
| 12 | 93194-01 | Washer-Rubber | ||
| 13 | 92479 | Lever/ Handguard | ||
| 14 | 213278 | Kit-Clutch | ||
| 15 | 93608 | Spring-Assembly | ||
| 16 | 110957 | Rivet-Flt. 1/8 x .547 | ||
| 17 | 85064 | Plate | ||
| 18 | 94247 | Kit-Rotor | ||
| 19 | 94244 | Nut-Clutch (160-170 in. lb. torque) | ||
| 20 | 94243 | Plate-Dust | ||
| 21 | 215252 | Drum/Sprocket/Bearing Assembly | ||
| 22 | 91222 | Kit-Needle Bearing | ||
| 23 | 215259 | Spacer-Drum | ||
| 24 | 110953 | Screw-Hx Hd 12-24 x 5/8 (70-80 in. lb. torque) | ||
| 25 | 110686 | Screw-Hx Hd 13-16 x 2 (35-45 in. lb. torque) | ||
| 26 | 214505 | Frame/Grip Assembly | ||
| 27 | 217761 | Kit-Fuel/Oil Tank | ||
| 28 | 91148 | Seal-Fuel Vent | ||
| 29 | 84956 | Pickup-Fuel | ||
| 30 | 217755 | Piston-Manual Oiler | ||
| 31 | 83946 | Spring-Piston | ||
| 32 | 85557 | Body-Oiler | ||
| 33 | 216668 | Cap-Fuel/Oil | ||
| 34 | 217759 | Rod-Manual Oiler | ||
| 35 | 110672 | Screw-Oval Hd 4-40 x 1 | ||
| 36 | 83870 | Knob - Choke | ||
| 37 | 93437 | Latch Assembly - Throttle | Used on models with Throttle Latch on the carburetor. | |
| 38 | Screw-Long Neck | Used on models with Throttle Latch on the carburetor. | ||
| 39 | Latch-Throttle | Used on models with Throttle Latch on the carburetor. | ||
| 40 | Spring-Compression | Used on models with Throttle Latch on the carburetor. | ||
| 41 | 217908 | Handle/Safety Trigger Assembly | Used on models with Throttle Latch on the carburetor. | |
| 218130 | Handle/Safety Trigger Assembly/Throttle Latch Assembly | Used on models with Throttle Latch on the handle. | ||
| 42 | Knob-Throttle Latch | Used on models with Throttle Latch on the handle. | ||
| 43 | Spring-Throttle Latch | Used on models with Throttle Latch on the handle. | ||
| 44 | Rivert-Flat | Used on models with Throttle Latch on the handle. | ||
| 45 | 68566 | Screw-Idle Adjustment | Used on models with Throttle Latch on the handle. | |
| 46 | 110807 | Screw-Pan Hd 8-32 x .312 (35-50 in. lb. torque) | ||
| 47 | 93290 | Deflector-Sawdust | ||
| 48 | 217015 | Shroud-Using Auto Sharp | Used on units equipped with Auto Sharp | |
| 216963 | Shroud-Non Auto Sharp | |||
| 49 | 91851 | Cover-Air Filter | ||
| 50 | 91796 | Screw-Filter Cover | ||
| 51 | 216905 | Filter-Air | ||
| 52 | 84918 | Washer-Air Seal | ||
| 53 | 216490 | Screw-Hex Hd 12-24 x .76 (70-80 in. lb. torque) | ||
| 54 | 110959 | Screw-Hex Hd 8-32 x .50 (25-30 in. lb. torque) | ||
| 55 | 90425 | Housing-Starter | ||
| 56 | 110041 | Screw-Pan Hd 8-32 x .50 (20-25 in. lb. torque) | ||
| 57 | 68497 | Washer-Special | ||
| 58 | 213257 | Drum/Rope Assembly | Also included in Starter Drum/Pawl Kit, p/n 213261. See Service Bulletin 1833. | |
| 59 | 83203 | Rope-Starter | ||
| 60 | 83078 | Spring-Rewind | ||
| 61 | 91255 | Kit-Starter Handle | ||
| 62 | 105490 | Washer-Starter Handle | ||
| 63 | 110953 | Screw-Hex Hd 12-24 x .625 (20-25 in. lb. torque) | ||
| 64 | 84520-01 | Plate-Washer | ||
| 65 | 84519 | Sleeve-Handle | ||
| 66 | 217909 | Trigger-Throttle | ||
| 67 | 83940 | Spring-Tringger Return | ||
| 68 | 83935 | Contact-Switch | ||
| 69 | 83936 | Protector-Switch | ||
| 70 | 83934 | Button-Switch | ||
| 71 | 218853-01 | Decal-2.0 Cu. In. | ||
| 218884-01 | Decal-Name Eager Beaver | |||
| 72 | 219058 | Label-Safety | ||
| 73 | Powerhead Asy. |

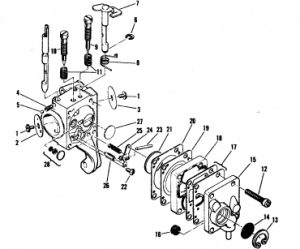

Carburetor Assembly-ZAMA
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 214082-01 | Carburetor Assy-Zama M1-M7 | One of two carburetors used alternately. Identify carburetor before ordering repair kits. | ||
| 1 | Screw - Plate | |||
| 2 | Valve - Choke | |||
| 3 | Valve - Throttle | |||
| 4 | Spring - Choke | |||
| 5 | Ball - Friction | |||
| 6 | "E" Ring | |||
| 7 | Shaft Assembly - Throttle | |||
| 8 | Spring - Throttle Return | |||
| 9 | Screw - Idle Adjustment | Contained in Needle Kit, P/N 217086. | ||
| 10 | Screw - Main Adjustment | Contained in Needle Kit, P/N 217086. | ||
| 11 | Spring - Screw | Contained in Needle Kit, P/N 217086. | ||
| 12 | Screw - Cover | |||
| 13 | "C" Ring | |||
| 14 | Strainer | Contained in Repair Kit, P/N 217079. | ||
| 15 | Cover - Pump | |||
| 16 | Screen | Contained in Repair Kit, P/N 217079. | ||
| 17 | Kit - Pump diaphragm | Contained in Gasket/Diaphragm Kit, P/N 216722. , Contained in Repair Kit, P/N 217079. | ||
| 18 | Body - Pump | |||
| 19 | Diaphragm - Main | Contained in Gasket/Diaphragm Kit, P/N 216722. , Contained in Repair Kit, P/N 217079. | ||
| 20 | Gasket - Main | Contained in Gasket/Diaphragm Kit, P/N 216722. , Contained in Repair Kit, P/N 217079. | ||
| 21 | Disk | Contained in Repair Kit, P/N 217079. | ||
| 22 | Screw | Contained in Repair Kit, P/N 217079. | ||
| 23 | Pin-Arm | Contained in Repair Kit, P/N 217079. | ||
| 24 | Arm - Needle Valve | Contained in Repair Kit, P/N 217079. | ||
| 25 | Spring - Arm | Contained in Repair Kit, P/N 217079. | ||
| 26 | Valve - Needle | Contained in Repair Kit, P/N 217079. | ||
| 27 | Plug - Welch | Contained in Repair Kit, P/N 217079. | ||
| 28 | Valve Asy - Main Nozzle | Contained in Repair Kit, P/N 217079. |

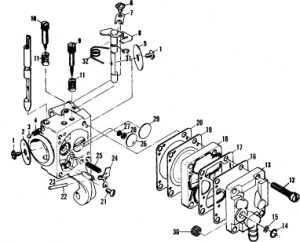

Carburetor Assembly-WALBRO
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 214082-01 | Carburetor Assy - Walbro MDC | One of two carburetors used alternately. Identify carburetor before ordering repair kits. | ||
| 1 | Screw - Plate | Contained in Major Repair Kit, P/N 217084 | ||
| 2 | Plate - Choke | |||
| 3 | Ball - Choke Friction | Contained in Major Repair Kit, P/N 217084 | ||
| 4 | Spring - Choke Friction | Contained in Major Repair Kit, P/N 217084 | ||
| 5 | Plate - Throttle | |||
| 6 | Screw - Clip | |||
| 7 | Clip - Throttle Shaft | |||
| 8 | Shaft Assembly - Throttle | |||
| 9 | Needle - Idle | Contained in Major Repair Kit, P/N 217084 | ||
| 10 | Needle - High Speed | Contained in Major Repair Kit, P/N 217084 | ||
| 11 | Spring - Needle | Contained in Major Repair Kit, P/N 217084 | ||
| 12 | Screw Assembly - Body | Contained in Major Repair Kit, P/N 217084 | ||
| 13 | Cover Assembly - Pump | |||
| 14 | Ring - Vent Screen | Contained in Major Repair Kit, P/N 217084 , Contained in Minor Repair Kit, P/N 216727 | ||
| 15 | Vent - Screen | Contained in Major Repair Kit, P/N 217084 , Contained in Minor Repair Kit, P/N 216727 | ||
| 16 | Diaphragm - Fuel Pump | Contained in Major Repair Kit, P/N 217084 , Contained in Minor Repair Kit, P/N 216727 | ||
| 17 | Gasket - Metering Diaphragm | Contained in Major Repair Kit, P/N 217084 , Contained in Minor Repair Kit, P/N 216727 | ||
| 18 | Body - Fuel Pump | |||
| 19 | Diaphragm Assembly - Metering | Contained in Major Repair Kit, P/N 217084 , Contained in Minor Repair Kit, P/N 216727 | ||
| 20 | Gasket - Fuel Pump | Contained in Major Repair Kit, P/N 217084 , Contained in Minor Repair Kit, P/N 216727 | ||
| 21 | Screw - Metering Lever Pin | Contained in Major Repair Kit, P/N 217084 , Contained in Minor Repair Kit, P/N 216727 | ||
| 22 | Pin - Metering Lever | Contained in Major Repair Kit, P/N 217084 , Contained in Minor Repair Kit, P/N 216727 | ||
| 23 | Valve - Inlet Needle | Contained in Major Repair Kit, P/N 217084 , Contained in Minor Repair Kit, P/N 216727 | ||
| 24 | Lever - Metering | Contained in Major Repair Kit, P/N 217084 , Contained in Minor Repair Kit, P/N 216727 | ||
| 25 | Spring - Metering Lever | Contained in Major Repair Kit, P/N 217084 , Contained in Minor Repair Kit, P/N 216727 | ||
| 26 | Plug - Welch 7/16 | Contained in Major Repair Kit, P/N 217084 , Contained in Minor Repair Kit, P/N 216727 | ||
| 27 | Screen - Inlet | Contained in Major Repair Kit, P/N 217084 , Contained in Minor Repair Kit, P/N 216727 | ||
| 28 | Ring - Inlet Screen | Contained in Major Repair Kit, P/N 217084 | ||
| 29 | Plug - Welch 1/2 | Contained in Major Repair Kit, P/N 217084 , Contained in Minor Repair Kit, P/N 216727 | ||
| 30 | Screen | Contained in Major Repair Kit, P/N 217084 , Contained in Minor Repair Kit, P/N 216727 | ||
| 31 | Ring - Retaining | Contained in Major Repair Kit, P/N 217084 , Contained in Minor Repair Kit, P/N 216727 | ||
| 32 | Spring - Throttle Return |
Powerhead Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 86438 | Valve-Check | Used on units with manual oiler only. | |
| 2 | 217156 | Connector-Oil Tank/Bar Pad | Used on units with manual oiler only. | |
| 3 | 105603 | "O" Ring-Connector Spacer | Used on units with manual oiler only. | |
| 4 | 217168 | Connector-Pump/Bar Pad | Used on units equipped with automatic oiler. | |
| 5 | 217167 | Connector-Pump/Oil Tank | Used on units equipped with automatic oiler. | |
| 6 | 83896 | Bail-Pump Retaining | Used on units equipped with automatic oiler. | |
| 7 | 216563 | Automatic Oil Pump Assembly | Used on units equipped with automatic oiler. | |
| 8 | 83891 | Spring - return | Used on units equipped with automatic oiler. | |
| 9 | 110651 | Screw - Oil Flow Adjustment | Used on units equipped with automatic oiler. | |
| 10 | Body - Pump | Used on units equipped with automatic oiler. | ||
| 11 | 216426 | Kit - Oil Pump Repair | Used on units equipped with automatic oiler. | |
| 12 | 105603 | "O" Ring-.114 x .070 | Used on units equipped with automatic oiler. | |
| 13 | Ring - Oil Pump Piston | Used on units equipped with automatic oiler. | ||
| 14 | Piston Assembly - Oiler | Used on units equipped with automatic oiler. | ||
| 15 | Sleeve-Oil Pump | Used on units equipped with automatic oiler. | ||
| 16 | Eyelet | Used on units equipped with automatic oiler. | ||
| 17 | 110653 | "O" Ring - Pump/Crankcase | Used on units equipped with automatic oiler. | |
| 18 | 215411 | Muffler Assembly | Used on Mac 110-03, 04, 05 and 06; Mac 120-02 and 11; Mac 130-07 , 13 and 20; All Eager Beaver models. | |
| 19 | 110681 | Screw-Skt. Hd. 10-24 x .250 (40-45 in. lb. torque) | Used on Mac 110-03, 04, 05 and 06; Mac 120-02 and 11; Mac 130-07 , 13 and 20; All Eager Beaver models. | |
| 20 | 92961 | Deflector-Exhaust | Used on Mac 110-03, 04, 05 and 06; Mac 120-02 and 11; Mac 130-07 , 13 and 20; All Eager Beaver models. | |
| 21 | 213327 | Screw-Special (70-80 in. lb. torque) | Used on Mac 110-03, 04, 05 and 06; Mac 120-02 and 11; Mac 130-07 , 13 and 20; All Eager Beaver models. | |
| 22 | 214204 | Kit-Spark Arrestor Screen | Used on Mac 110-03, 04, 05 and 06; Mac 120-02 and 11; Mac 130-07 , 13 and 20; All Eager Beaver models. | |
| 23 | 101987 | Screw-6-32 x .250 | Used on Mac 110-03, 04, 05 and 06; Mac 120-02 and 11; Mac 130-07 , 13 and 20; All Eager Beaver models. | |
| 24 | 215871 | Nut - Muffler (40-60 in. lb. torque) | Used on Mac 110-01, 03, 04, 07, 08, 11, 13, 14, 20 and 27; Mac 120-02; Mac 130-06, 07, 20; All Eager Beaver Models. | |
| 25 | 215471 | Plate-Lock | Used on Mac 110-01, 03, 04, 07, 08, 11, 13, 14, 20 and 27; Mac 120-02; Mac 130-06, 07, 20; All Eager Beaver Models. | |
| 26 | 215472 | Deflector-Exhaust | Used on Mac 110-01, 03, 04, 07, 08, 11, 13, 14, 20 and 27; Mac 120-02; Mac 130-06, 07, 20; All Eager Beaver Models. | |
| 27 | 216805 | Screen-Spark Arrestor | Used on Mac 110-01, 03, 04, 07, 08, 11, 13, 14, 20 and 27; Mac 120-02; Mac 130-06, 07, 20; All Eager Beaver Models. | |
| 28 | 215774 | Cover | Used on Mac 110-01, 03, 04, 07, 08, 11, 13, 14, 20 and 27; Mac 120-02; Mac 130-06, 07, 20; All Eager Beaver Models. | |
| 29 | 215776 | Baffle | Used on Mac 110-01, 03, 04, 07, 08, 11, 13, 14, 20 and 27; Mac 120-02; Mac 130-06, 07, 20; All Eager Beaver Models. | |
| 30 | 213369 | Screw-Hex Wsh M6 (70-85 in. lb. torque) | Used on Mac 110-01, 03, 04, 07, 08, 11, 13, 14, 20 and 27; Mac 120-02; Mac 130-06, 07, 20; All Eager Beaver Models. | |
| 31 | 215757 | Bolt-Shoulder (65-85 in. lb. torque) | Used on Mac 110-01, 03, 04, 07, 08, 11, 13, 14, 20 and 27; Mac 120-02; Mac 130-06, 07, 20; All Eager Beaver Models. | |
| 32 | 215773 | Base | Used on Mac 110-01, 03, 04, 07, 08, 11, 13, 14, 20 and 27; Mac 120-02; Mac 130-06, 07, 20; All Eager Beaver Models. | |
| 33 | 62345 | Spark Plug-CS45T AC | Used on Mac 110-01, 03 and 08; Mac 130-06, 07 and 20; Mac 160S-02 and 03; All Eager Beaver models except 07. | |
| 92879 | Spark Plug-RDJ8J CH | Used on Mac 110-04, 05, and 15: Mac 120-11 and 17; Mac 130-12 and 13; and Eager Beaver -07. | ||
| 34 | 216039 | Rod-Throttle | ||
| 35 | 89059 | Hose-Fuel | ||
| 36 | 90660 | Adaptor-Fuel Hose | ||
| 37 | 110908 | "O" Ring - Adaptor | ||
| 38 | 216640 | Nut-Hex 5/16-24 (200-220 in.ib. torque) | ||
| 39 | 94737 | Flywheel/Pawl Assembly | ||
| 40 | 216984 | Pin-Pawl | See Service Bulletin 1833. When replacing metal pawls with plastic pawis, order these components. The plastic drum is also available with these components by ordering Starter Drum/Pawl Kit, p/n 213261. | |
| 41 | 216982 | Spring-Pawl | See Service Bulletin 1833. When replacing metal pawls with plastic pawis, order these components. The plastic drum is also available with these components by ordering Starter Drum/Pawl Kit, p/n 213261. | |
| 42 | 93469 | Washer-Pawl | See Service Bulletin 1833. When replacing metal pawls with plastic pawis, order these components. The plastic drum is also available with these components by ordering Starter Drum/Pawl Kit, p/n 213261. | |
| 43 | 216983 | Pawl-Starter | See Service Bulletin 1833. When replacing metal pawls with plastic pawis, order these components. The plastic drum is also available with these components by ordering Starter Drum/Pawl Kit, p/n 213261. | |
| 44 | 102164 | Key-Woodruff | ||
| 45 | 110586 | Screen-Pan Head 8-32 x 1.75 | ||
| 46 | 105976 | Washer-No. 8 Plain | ||
| 47 | 67177 | Washer-Insulating | ||
| 48 | 68198 | Tube-Insulating | ||
| 49 | Carburetor Assembly | |||
| 50 | 68197 | Gasket-Carburetor | ||
| 51 | 219389 | Connector/Insulator Assy | One of two (2) Stop Switch Connectors installed by the factory. Be sure to identify the connector used on your unit before ordering replacement parts. Note: Item51. p/n 219389 may be used as replacement for items 55, 56 and 57. | |
| 52 | 219754 | Insulator-Carburetor | One of two (2) Stop Switch Connectors installed by the factory. Be sure to identify the connector used on your unit before ordering replacement parts. Note: Item51. p/n 219389 may be used as replacement for items 55, 56 and 57. | |
| 53 | 219753 | Screw-Connector | One of two (2) Stop Switch Connectors installed by the factory. Be sure to identify the connector used on your unit before ordering replacement parts. Note: Item51. p/n 219389 may be used as replacement for items 55, 56 and 57. | |
| 54 | 219390 | Connector-Stop Switch | One of two (2) Stop Switch Connectors installed by the factory. Be sure to identify the connector used on your unit before ordering replacement parts. Note: Item51. p/n 219389 may be used as replacement for items 55, 56 and 57. | |
| 55 | 213032 | Screw-Hex HD 8-32 x 1/2 | One of two (2) Stop Switch Connectors installed by the factory. Be sure to identify the connector used on your unit before ordering replacement parts. Note: Item51. p/n 219389 may be used as replacement for items 55, 56 and 57. | |
| 56 | 217758 | Connector-Stop Switch | One of two (2) Stop Switch Connectors installed by the factory. Be sure to identify the connector used on your unit before ordering replacement parts. Note: Item51. p/n 219389 may be used as replacement for items 55, 56 and 57. | |
| 57 | Eyelet-Connector | One of two (2) Stop Switch Connectors installed by the factory. Be sure to identify the connector used on your unit before ordering replacement parts. Note: Item51. p/n 219389 may be used as replacement for items 55, 56 and 57. | ||
| 58 | 90714 | Gasket-Insulator | ||
| 59 | 84957 | Coil-Lamination Assembly | Used on 11 level Eager Beaver units. | |
| 60 | 215351 | Wire Assembly-Spark Plug | Used on 11 level Eager Beaver units. | |
| 61 | 110364 | Screw-Pan Head 6-32 x 5/8 | Used on 11 level Eager Beaver units. | |
| 62 | 69344 | Wire Assembly Coil | Used on 11 level Eager Beaver units. | |
| 63 | 110041 | Screw-Pan Head 8-32 x 1/2 | Used on 11 level Eager Beaver units. | |
| 64 | 85358 | Condenser | Used on 11 level Eager Beaver units. | |
| 65 | 100035 | Nut-Hex 6-32 | Used on 11 level Eager Beaver units. | |
| 66 | 84502 | Connector-Stop Switch | Used on 11 level Eager Beaver units. | |
| 67 | 67841 | Cover-Breaker Box | Used on 11 level Eager Beaver units. | |
| 68 | 69323 | Seal-Breaker Box | Used on 11 level Eager Beaver units. | |
| 69 | 213032 | Screw-Hex Head 8-32 x 1/2 | Used on 11 level Eager Beaver units. | |
| 70 | 69322 | Washer-Special | Used on 11 level Eager Beaver units. | |
| 71 | 105876 | Washer-No. 8 | Used on 11 level Eager Beaver units. | |
| 72 | 88811 | Breaker-Assembley | Used on 11 level Eager Beaver units. | |
| 73 | 54505-01 | Kit-Breaker Box | Used on 11 level Eager Beaver units. | |
| 74 | 92037 | Washer | Used on 11 level Eager Beaver units. | |
| 75 | 217031 | Electronic Ignition Assembly | Used on 12 level Eager Beaver models and 17 level and 18 level Mac models. | |
| 76 | 217190 | Wire Assembly-Stop Switch | Used on 12 level Eager Beaver models and 17 level and 18 level Mac models. | |
| 77 | 217165 | Cylinder/Crankcase Using Auto Sharp | Used on units equipped with Auto Sharp. | |
| 216935 | Cylinder/Crankcase Using Automatic Oiler | |||
| 217067 | Cylinder/Crankcase Without Automatic Oiler | |||
| 216950 | Cylinder/Crankcase Using Automatic Oiler | Used on Mac 160 S and Eager Beaver Super 16 models only. | ||
| 78 | 120097 | Screw-Hex M5 x 0.8 x 25 (70-80 in. lb. torque) | ||
| 79 | 83856 | Bolt-Bar Mounting | ||
| 80 | 110914 | Plug-Cup | ||
| 81 | 94662 | Piston Assembly | ||
| 216713 | Piston Assembly | Used on Mac 160 S and Eager Beaver Super 16 models only. | ||
| 82 | 95143 | Set-Piston Rings | ||
| 216705 | Set-Piston Rings | Used on Mac 160 S and Eager Beaver Super 16 models only. | ||
| 83 | 92836 | Pin-Piston | ||
| 84 | 111026 | Ring-Snap | ||
| 85 | 94135 | Connecting Rod Assembly | ||
| 86 | 94654 | Screw-Connecting Rod | ||
| 87 | 68095 | Roller-Needle (set of 20) | ||
| 88 | 110984 | Bearing-Needle | ||
| 89 | 213282 | Bearing-Crankshaft | if the Crankshaft Bearing and Seal have been installed into a Metal Sleeve, order part number 93763 which includes the Sleeve and item numbers 89 and 90. | |
| 90 | 83859 | Seal-Crankshaft | if the Crankshaft Bearing and Seal have been installed into a Metal Sleeve, order part number 93763 which includes the Sleeve and item numbers 89 and 90. | |
| 91 | 217029 | Crankshaft |

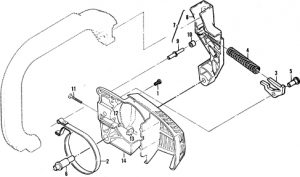

Chain Brake Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 216551 | Chain Brake Assembly | Used on Mac 110-A, N and 0; Mac 120-P and Q; and Mac 130-F and L. | ||
| 216417 | Chain Brake Assembly | Used on all Eager Beaver and Mac 110-C, D, E and H; Mac 120-B and K; and Mac 130-G, M and T. | ||
| 1 | 111047 | Srew-Pan Hd 8-32 x .625 | ||
| 2 | 94709 | Band-Brake | ||
| 3 | 215758 | Kit-Latch | ||
| 4 | Spring-Compression | |||
| 5 | 93602 | Pivot-Latch | ||
| 6 | 216549 | Pivot-Lever | ||
| 7 | 216417 | Lever Assembly-Actuating | ||
| 8 | 92867 | Lever | ||
| 9 | 213907 | Pin-Roller | ||
| 10 | 214368 | Bearing-Roller | ||
| 11 | 60658 | Screw-Adjusting | ||
| 12 | 110907 | Ring-Retaining | ||
| 13 | 84929 | Nut-Bar Adjusting | ||
| 14 | 216553 | Housing-Brake | Used on Mac 110-A, N and 0; Mac 120-P and Q; and Mac 130-F and L. | |
| 216414 | Housing-Brake | Used on all Eager Beaver and Mac 110-C, D, E and H; Mac 120-B and K; and Mac 130-G, M and T. |
