McCulloch M3616
McCulloch M3616

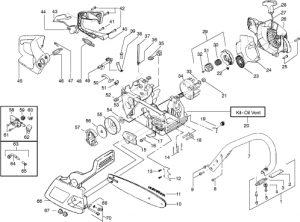

Body
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 530059667 | Assembly.-Isolator | ||
| 2 | 530047608 | Limiter Strap | ||
| 3 | 530059668 | Spring-Isolator | ||
| 4 | 530015158 | Washer | ||
| 5 | 530016018 | Screw | ||
| 6 | 530015843 | Screw | ||
| 7 | 545048001 | Front Handle | ||
| 8 | 530015940 | Screw | ||
| 9 | 530015814 | Screw | ||
| 10 | 530044915 | Bar 16” | ||
| 11 | 530051442 | Chain 16” | ||
| 12 | 530014381 | Kit-Spike (Incl. 13) | ||
| 13 | 530016439 | Screw | ||
| 14 | 530016132 | Screw | ||
| 15 | 530038238 | Plate-Bar Mount. | ||
| 16 | 530015814 | Screw | ||
| 17 | 530029850 | Chain Catcher | ||
| 18 | 530016133 | Bolt-Bar | ||
| 19 | 530057236 | Assembly-Oil Cap | ||
| 20 | 530071666 | Kit-Oil Vent | ||
| 21 | 530016134 | Nut-Flywheel | ||
| 22 | 530016080 | Screw | ||
| 23 | 530027531 | Spring-Starter | ||
| 24 | 530055723 | Baffle-Air | ||
| 25 | 530015892 | Screw | ||
| 26 | 545050903 | Housing-Fan | ||
| 27 | 530069232 | Kit - Rope | ||
| 28 | 530056402 | Handle-Starter | ||
| 29 | 530071966 | Kit-EPS Starter (Incl. 22,30,31,32) | ||
| 30 | 530021180 | Spring-EPS | ||
| 31 | 530059677 | Hub-EPS | ||
| 32 | 530021179 | Screw | ||
| 33 | 530015127 | Washer-Flywheel | ||
| 34 | 545016301 | Assembly-Flywheel | ||
| 35 | 530047192 | Assembly-Fuel Cap | ||
| 36 | 530023877 | Fitting-fuel line | ||
| 37 | 530069216 | Kit-Fuel line (large) | ||
| 38 | 530016149 | Spring-Switch | ||
| 39 | 530015775 | Screw | ||
| 40 | 530047581 | Cover-Rear Handle | ||
| 41 | 530015886 | Screw | ||
| 42 | 530015906 | Screw | ||
| 43 | 530036098 | Throttle Lockout | ||
| 44 | 530036097 | Trigger-Throttle | ||
| 45 | 545025001 | Handle - Rear | ||
| 46 | 530071958 | Kit-Isolator (Upper) | ||
| 47 | 530015875 | Screw | ||
| 48 | 530059668 | Spring-Isolator | ||
| 49 | 530057473 | Lever-Switch | ||
| 50 | 530057474 | Lever-Choke | ||
| 51 | 530049005 | Grommet-Knob | ||
| 52 | 530015922 | Nut-”U”-Type | ||
| 53 | 530058730 | Assembly-Chassis fuel lines and caps ) | ||
| 54 | 530015907 | Washer-Thrust | ||
| 55 | 530047061 | Assembly.-Clutch Drum w/bearing | ||
| 56 | 530015611 | Washer-Clutch | ||
| 57 | 530014949 | Assembly. Clutch | ||
| 58 | 530071259 | Kit - Oil Pump (incl. 59,60,62) | ||
| 59 | 530037820 | Gear-Worm Spring | ||
| 60 | 530049477 | Elbow-Oil Pickup | ||
| 61 | 530016064 | Screw | ||
| 62 | 530019206 | Seal Block | ||
| 63 | 530047663 | Assembly-Oil Pick-up (Incl. 64,65) | ||
| 64 | 530038373 | Pick-up Oiler | ||
| 65 | 530056533 | Filter-Oil | ||
| 66 | 545139901 | Assembly.-Chain Brake | ||
| 67 | 530015917 | Nut-Bar Mounting | ||
| 68 | 530015826 | Pin-Bar Adjust | ||
| 69 | 530038593 | Retainer | ||
| 70 | 530069611 | Kit-Bar Adjusting (incl. # 68,69) |

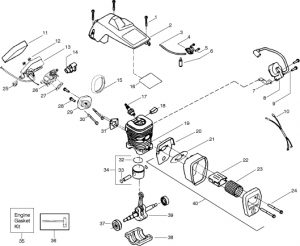

Engine
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 530016153 | Screw | ||
| 2 | 530056914 | Assembly-Cylinder Shield (includes # 16) | ||
| 3 | 530069247 | Kit-Fuel Line (Small) | ||
| 4 | 530071835 | Kit-Air Purge (incl. #5) | ||
| 5 | 530015780 | Screw | ||
| 6 | 530095646 | Assembly-Fuel Pick-up | ||
| 7 | 530047442 | Strap-Ground | ||
| 8 | 530039238 | Ignition Module | ||
| 9 | 530015814 | Screw | ||
| 10 | 530057475 | Assembly-Wire Harness | ||
| 11 | 530037793 | Foam-Air Filter | ||
| 12 | 530016101 | Nut | ||
| 13 | 530016101 | Assembly-Air Box | ||
| 14 | 530049244 | Grommet-Carb Adjust | ||
| 15 | 530054144 | Seal-Carb Adapter | ||
| 16 | 530055698 | Reflector-Heat | ||
| 17 | 952030150 | Spark Plug (RCJ-7Y) | ||
| 18 | 530016136 | Clip-High Tension Lead | ||
| 19 | 530012550 | Cylinder | ||
| 20 | 530049870 | Backplate-Muffler | ||
| 21 | 530069608 | Gasket-Muffler(kit) | ||
| 22 | 530037813 | Diffuser-Muffler | ||
| 23 | 530036103 | Screen-Spark | ||
| 24 | 530016132 | Bolt-Muffler | ||
| 25 | 530047631 | Grommet-Throttle Cable | ||
| 26 | Kit-Carburetor | |||
| 545081885 | Walbro (WT-89) (Incl. Grommet) | |||
| 27 | 530069608 | Gasket-Carb. (kit) | ||
| 28 | 530016386 | Screw | ||
| 29 | 530049700 | Carb. Adapter | ||
| 30 | 530016187 | Screw | ||
| 31 | 530069608 | Gasket- Adaptor(kit) | ||
| 32 | 530038729 | Ring-Piston | ||
| 33 | 530015697 | Retainer-Piston Pin | ||
| 34 | 530071408 | Kit-Piston (Incl. 32 & 33) | ||
| 35 | 530069608 | Kit-Engine Gasket (Incl. 21, 27 & 31) | ||
| 36 | 530031135 | Scrench | ||
| 37 | 530056363 | Assembly-Seal & Bearing | ||
| 38 | 530037935 | Cap-Crankcase | ||
| 39 | 530047062 | Assembly-Crankshaft | ||
| 40 | 530047207 | Assembly-Muffler (Incl. 20,21,22,23,24) | ||
| 545154712 | Manual | Not Shown | ||
| 545003030 | Decal-Warning | Not Shown |
