McCulloch MAC 538E 14
McCulloch MAC 538E 14

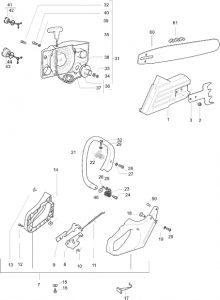

Body
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 538248439 | Kit Clutch Cover | ||
| 2 | 538227762 | Nut M8 | ||
| 3 | 538241992 | Spiked Bumper | ||
| 7 | 538243027 | Rear Handle Assembly | ||
| 8 | 538240301 | Throttle Trigger | ||
| 9 | 538240302 | Safety Trigger | ||
| 10 | 538240303 | Throttle Trigger Spring | ||
| 11 | 538240367 | Throttle Cable Assembly | ||
| 12 | 538240862 | Screw 4X18 | ||
| 13 | 538242439 | Switch | ||
| 14 | 538229524 | Nut M5 | ||
| 15 | 538227259 | Washer | ||
| 16 | 538240845 | Screw | ||
| 17 | 538243025 | Choke Knob Assembly | ||
| 18 | 538240315 | Nut | ||
| 19 | 538235248 | Washer M5 | ||
| 20 | 538235802 | Screw M5X14 | ||
| 21 | 538240281 | Front Handle | ||
| 22 | 538241231 | Spring | ||
| 23 | 538240285 | Spring | ||
| 24 | 538240354 | Screw 6X30 | ||
| 25 | 538235248 | Washer M5 | ||
| 26 | 538235802 | Screw M5X14 | ||
| 27 | 538235248 | Washer M5 | ||
| 28 | 538235803 | Screw M5X25 | ||
| 29 | 538227259 | Washer | ||
| 31 | 538241854 | Starter Assembly | ||
| 32 | 538240316 | Screw M5X35 | ||
| 33 | 538240921 | Washer | ||
| 34 | 538229208 | Nut M5 | ||
| 35 | 538240884 | Starter Handle | ||
| 36 | 538235372 | Pulley And Rope | ||
| 37 | 538235042 | Rope | ||
| 38 | 538235040 | Spring | ||
| 39 | 538235248 | Washer M5 | ||
| 40 | 538236997 | M5X30 Screw | ||
| 41 | 538240866 | Oil Cap Assembly | ||
| 42 | 538235511 | O-Ring (Oil Cap) | ||
| 43 | 538240865 | Fuel Cap Assembly | ||
| 44 | 538235510 | O-Ring (Fuel Cap) | ||
| 46 | 538236934 | Washer | ||
| 50 | 538240323 | Spacer | ||
| 60 | 538243202 | Bar W/O Packaging | ||
| 61 | 538102632 | Chain W/O Packaging |

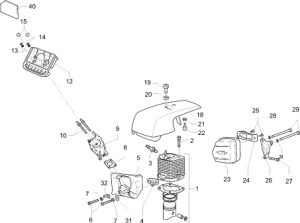

Engine Casing
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | Cylinder and Piston | |||
| 2 | 538227565 | Screw M5X25 | ||
| 3 | 538092879 | Spark Plug RDJ8J | ||
| 4 | 538240345 | Gasket | ||
| 5 | 538240261 | Carb.Spacer | ||
| 6 | 538236997 | Screw M5X30 | ||
| 7 | 538236529 | Split Washer | ||
| 8 | 538227692 | Gasket | ||
| 9 | Carburetor | |||
| 10 | 538240328 | Bolt | ||
| 11 | 538240334 | Screw M5X40 | ||
| 12 | 538240262 | Air Filter Box | ||
| 13 | 538235248 | Washer M5 | ||
| 14 | 538235216 | Nut M5 | ||
| 15 | 538241239 | Cap | ||
| 18 | 538242669 | Engine Cover | ||
| 19 | 538240320 | Screw | ||
| 21 | 538236936 | Washer | ||
| 22 | 538240272 | Grommet | ||
| 23 | 538240291 | Muffler | ||
| 24 | 538240297 | Baffle | ||
| 25 | 538236981 | Screw T5 | ||
| 26 | 538240299 | Muffler Support | ||
| 27 | 538236997 | Screw M5X30 | ||
| 28 | 538227626 | Washer D5 | ||
| 29 | 538227567 | Screw M5X70 | ||
| 31 | 538235248 | Washer M5 | ||
| 32 | 538228139 | Faston Male | ||
| 40 | 538241238 | Air Filter |
Engine
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 538247254 | 40cc Kit | ||
| 2 | 538240343 | Gasket | ||
| 3 | 538247257 | 40cc Piston Kit | ||
| 4 | 538235008 | Snap Ring | ||
| 5 | 538240085 | 40cc Piston Ring |
Carburetor-WALBRO WT 695
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 538242938 | Carburetor | |||
| 1 | 538247260 | Main Kit K20 WAT | ||
| 2 | 538229191 | Gasket-Diaphragm.W | ||
| 3 | 538247261 | Pump Cover | ||
| 4 | 538237481 | Idle Screw Kit | ||
| 8 | 538247387 | 98-3249 Spring |
Carburetor-ZAMA C1Q-M39
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 538242062 | Carburetor | |||
| 1 | 538226226 | Repair Kit C1Q | ||
| 2 | 538226227 | Gasket-Diaphragm C1Q |

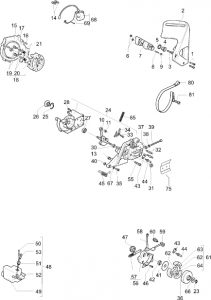

Mechanical Drive
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 538235806 | Screw M5X20 | ||
| 2 | 538241907 | Brake Lever | ||
| 3 | 538241905 | Screw M6X25 | ||
| 4 | 538241904 | Sleeve | ||
| 5 | 538241906 | Washer D.10X15X1 | ||
| 6 | 538235642 | Nut M5 | ||
| 7 | 538241902 | Brake Housing | ||
| 8 | 538242017 | Band Pivot | ||
| 9 | 538241903 | Brake Needle | ||
| 10 | 538241871 | Crankshaft Assembly | ||
| 11 | 538235742 | Needle Bearing 9X12X14 | ||
| 13 | 538235672 | Tank Grommet | ||
| 14 | 538235806 | Screw M5X20 | ||
| 15 | 538247290 | Air Conveyor | ||
| 16 | 538240358 | Spacer | ||
| 17 | 538235218 | Nut M8 | ||
| 18 | 538242621 | Flywheel | ||
| 19 | 538235516 | Pin (Starter Pawl) | ||
| 20 | 538235517 | Starter Pawl | ||
| 21 | 538235518 | Starter Spring | ||
| 23 | 538229137 | Benzing 4mm | ||
| 24 | 538248496 | Crankcase Kit | ||
| 25 | 538235899 | Seeger Ring | ||
| 26 | 538241879 | Seal 15X32X4/5 | ||
| 27 | 538235900 | Ball Bearing 6002 15/32/9 | ||
| 28 | 538241077 | Self-Threading Screw 4X14 | ||
| 30 | 538241253 | Needle Bearing 15X21X12 | ||
| 31 | 538228872 | Seal 13-32-5 (S7) | ||
| 32 | 538241881 | Bar Bolt M8 | ||
| 33 | 538235075 | Latch Pivot | ||
| 34 | 538094006 | Brake Latch | ||
| 35 | 538235806 | Screw M5X20 | ||
| 36 | 538240260 | Drum Sprocket 3/8 | ||
| 37 | 538241908 | Bar Adjustment Nut | ||
| 38 | 538235367 | Benzing 4mm | ||
| 39 | 538241909 | Screw | ||
| 40 | 538235642 | Nut M5 | ||
| 41 | 538241346 | Washer | ||
| 42 | 538242006 | Clutch Spacer | ||
| 43 | 538240309 | Oil Cap Plate | ||
| 44 | 538240363 | Chain Catcher | ||
| 45 | 538240286 | Spring | ||
| 46 | 538235802 | Screw M5X14 | ||
| 47 | 538241882 | Oil Pump Screw | ||
| 48 | 538240920 | Fuel Tank Assembly | ||
| 49 | 538240300 | Fuel Tank | ||
| 50 | 538229789 | Fuel Hose | ||
| 51 | 538235675 | Fuel Tank Grommet | ||
| 52 | 538240452 | Fuel Pick Up | ||
| 53 | 538227582 | Vent Filter | ||
| 55 | 538236997 | M5X30 Screw | ||
| 56 | 538241883 | Oil Pump Assembly | ||
| 57 | 538241885 | Oil Pump Piston Kit | ||
| 58 | 538241895 | Pipe Joint | ||
| 59 | 538241896 | Oil Pump Tube | ||
| 60 | 538225062 | Oil Filter | ||
| 61 | 538242004 | Clutch Assembly | ||
| 62 | 538240926 | Spring | ||
| 63 | 538227359 | Shoe Clutch | ||
| 64 | 538242005 | Rotor Clutch | ||
| 65 | 538235076 | Brake Spring | ||
| 66 | 538235287 | Clutch Waher | ||
| 67 | 538227259 | Washer | ||
| 68 | 538243029 | Ignition Coil Assembly | ||
| 69 | 538243040 | Wires Assembly | ||
| 75 | 538241914 | Bar Plate | ||
| 80 | 538235073 | Brake Band | ||
| 81 | 538235812 | Brake Screw |
