McCulloch Mac 538E 18″
McCulloch Mac 538E 18″

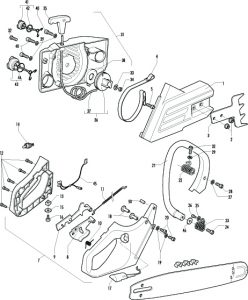

Body
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 248438 / 538248438 | Kit Clutch Cover | ||
| 2 | 242501 / 538242501 | M6 / CH13 | ||
| 3 | 241993 / 538241993 | Spike | ||
| 4 | 235073 / 538235073 | Band Brake | ||
| 5 | 235812 / 538235812 | Special Brake Screw | ||
| 7 | 240339 / 538240339 | Rear Handle Assy | ||
| 8 | 240301 / 538240301 | Gas Lever | ||
| 9 | 240302 / 538240302 | Safety Trigger | ||
| 10 | 240303 / 538240303 | Gas Lever Spring | ||
| 11 | 240367 / 538240367 | Wire Assy | ||
| 12 | 240862 / 538240862 | Screw 4X18 | ||
| 13 | 229524 / 538229524 | Nut M5 | ||
| 14 | 240859 / 538240859 | Switch On_Off | ||
| 15 | 227259 / 538227259 | Washer | ||
| 16 | 240845 / 538240845 | Screw | ||
| 17 | 247259 / 538247259 | Rod Chok Assy | ||
| 18 | 240315 / 538240315 | Nut | ||
| 19 | 235248 / 538235248 | Washer M5 | ||
| 20 | 235802 / 538235802 | Screw M5 X 14 TCE | ||
| 21 | 240281 / 538240281 | Front Handle | ||
| 22 | 241231 / 538241231 | Upper Av Spring Assy | ||
| 22 | 240289 / 538240289 | Spring | ||
| 23 | 240285 / 538240285 | Spring | ||
| 24 | 240354 / 538240354 | Screw 6X30 | ||
| 25 | 235248 / 538235248 | Washer M5 | ||
| 26 | 235802 / 538235802 | Screw M5 X 14 TCE | ||
| 27 | 235248 / 538235248 | Washer M5 | ||
| 28 | 235803 / 538235803 | Screw M5 X 25 TCE | ||
| 29 | 227259 / 538227259 | Washer | ||
| 30 | 235802 / 538235802 | Screw M5 X 14 TCE | ||
| 31 | 241854 / 538241854 | Starter Assy | ||
| 32 | 240316 / 538240316 | Screw M5X35 | ||
| 33 | 240921 / 538240921 | Washer | ||
| 34 | 229208 / 538229208 | Nut M5 | ||
| 35 | 240884 / 538240884 | Starter-Handle | ||
| 36 | 235372 / 538235372 | Drum And Rope | ||
| 37 | 235042 / 538235042 | Rope | ||
| 38 | 235040 / 538235040 | Spring | ||
| 39 | 235248 / 538235248 | Washer M5 | ||
| 40 | 236997 / 538236997 | M5X30 Screw | ||
| 41 | 240866 / 538240866 | Oil Cap Assy | ||
| 42 | 235511 / 538235511 | O-Ring Oil Cap | ||
| 43 | 240865 / 538240865 | Fuel Cap Assy | ||
| 44 | 235510 / 538235510 | O-Ring Mix Cap | ||
| 45 | 240370 / 538240370 | Cable Assy | ||
| 46 | 236934 / 538236934 | Washer | ||
| 50 | 240323 / 538240323 | Spacer |

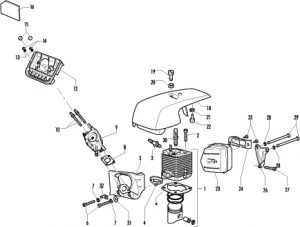

Engine Casing
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | Engine | |||
| 2 | 227565 / 538227565 | Screw M5X25 | ||
| 3 | 92879 / 538092879 | Spark Plug RDJ8J | ||
| 4 | 240345 / 538240345 | Gasket | ||
| 5 | 240271 / 538240271 | Carburetor Spacer | ||
| 6 | 236997 / 538236997 | M5X30 Screw | ||
| 7 | 236529 / 538236529 | Split Washer | ||
| 8 | 227692 / 538227692 | Gasket | ||
| 9 | Carburetor | |||
| 10 | 240328 / 538240328 | Bar Bolt | ||
| 12 | 240262 / 538240262 | Air Filter Box | ||
| 13 | 235248 / 538235248 | Washer M5 | ||
| 14 | 235216 / 538235216 | Nut M5 | ||
| 15 | 241239 / 538241239 | Rubber Cap | ||
| 16 | 241238 / 538241238 | Air Filter | ||
| 18 | 242669 / 538242669 | Engine Cover Assy | ||
| 19 | 240320 / 538240320 | Screw | ||
| 20 | 240321 / 538240321 | Washer | ||
| 21 | 236936 / 538236936 | Washer | ||
| 22 | 240272 / 538240272 | Fan Baffle | ||
| 23 | 240291 / 538240291 | Muffler | ||
| 24 | 240297 / 538240297 | Promac Muffler Baffle | ||
| 25 | 236981 / 538236981 | T5 Screw | ||
| 26 | 240299 / 538240299 | Support Muffler | ||
| 27 | 236997 / 538236997 | M5X30 Screw | ||
| 28 | 227626 / 538227626 | Washer D-5 | ||
| 29 | 227567 / 538227567 | Screw M5X70 | ||
| 30 | 94273 / 538094273 | Valve Comp.Release | ||
| 31 | 235248 / 538235248 | Washer M5 | ||
| 32 | 228139 / 538228139 | Contact Wire |
Engine
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 247253 / 538247253 | Cylinder Kit | ||
| 2 | 240343 / 538240343 | Gasket | ||
| 3 | 247256 / 538247256 | Piston Kit | ||
| 4 | 235008 / 538235008 | Ring Snap Int | ||
| 5 | 240005 / 538240005 | Piston Ring (1PC) |
Carburetor WALBRO WT 414
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 240350 / 538240350 | Carburator WT 414 | |||
| 1 | 247260 / 538247260 | Main Kit Carb.K20 WAT | ||
| 2 | 229191 / 538229191 | Gasket-Diaph.W | ||
| 3 | 247261 / 538247261 | Pump Cover | ||
| 4 | 237481 / 538237481 | Idle Screw Kit | ||
| 5 | 247388 / 538247388 | HI Screw Carb.WT 414 | ||
| 6 | 246540 / 538246540 | High Speed Needle | ||
| 7 | 229601 / 538229601 | Needles Spring | ||
| 8 | 247387 / 538247387 | 98-3249 Spring |
Carburetor ZAMA C1Q M39
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 242062 / 538242062 | Carb.Zama C1Q M39 | |||
| 1 | 226226 / 538226226 | Kit Repair Carb.C1Q | ||
| 2 | 226227 / 538226227 | Kit Gasket+Diaph C1Q |

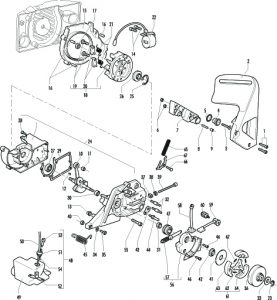

Mechanical Drive
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 235806 / 538235806 | Screw M5 X 20 TCE | ||
| 2 | 241907 / 538241907 | Brake Lever | ||
| 3 | 241905 / 538241905 | Screw M6X25 | ||
| 4 | 241904 / 538241904 | Sleeve | ||
| 5 | 241906 / 538241906 | Plan Washer D.10X15X1 | ||
| 6 | 235642 / 538235642 | Nut M5 | ||
| 7 | 241902 / 538241902 | Brake Housing | ||
| 8 | 242017 / 538242017 | Band Pivot | ||
| 9 | 241903 / 538241903 | Brake Needle | ||
| 10 | 241871 / 538241871 | Crankshaft Assy | ||
| 11 | 235742 / 538235742 | Needle Bearing 0 9X14X12 mm | ||
| 11 | 227329 / 538227329 | Bearing Needle | ||
| 12 | 227631 / 538227631 | Key | ||
| 13 | 235672 / 538235672 | Rubber Support Tank | ||
| 14 | 235806 / 538235806 | Screw M5 X 20 TCE | ||
| 15 | 247290 / 538247290 | Air Conveyor | ||
| 16 | 240358 / 538240358 | Spacer | ||
| 17 | 235218 / 538235218 | Nut M8 | ||
| 18 | 241204 / 538241204 | Flywheel Key=2 S7 | ||
| 19 | 235516 / 538235516 | Starter Pin Pawl | ||
| 20 | 235517 / 538235517 | Starter Pawl | ||
| 21 | 235518 / 538235518 | Starter Spring | ||
| 22 | 241291 / 538241291 | Ignition Coil Assy-S5 | ||
| 23 | 229137 / 538229137 | Benzing 8mm | ||
| 24 | 248497 / 538248497 | L Crankcase Kit | ||
| 25 | 235899 / 538235899 | Seeger Ring | ||
| 26 | 241879 / 538241879 | Seal 15X32X4/5 | ||
| 27 | 235900 / 538235900 | Ball Bearing 6002 15/32/9 | ||
| 28 | 241077 / 538241077 | Self-Thread Screw 4X14 | ||
| 29 | 240312 / 538240312 | Gasket | ||
| 30 | 241253 / 538241253 | Needle Bearing 15X21X12 | ||
| 31 | 228872 / 538228872 | Seal 13-32-5 (S7) | ||
| 32 | 241880 / 538241880 | Bar Bolt | ||
| 33 | 235287 / 538235287 | Clutch Washer | ||
| 34 | 227259 / 538227259 | Washer | ||
| 35 | 235806 / 538235806 | Screw M5 X 20 TCE | ||
| 36 | 240260 / 538240260 | Drum Sprocket 3/8 | ||
| 37 | 241908 / 538241908 | Nut Bar Adjustement | ||
| 38 | 235367 / 538235367 | Benzing 4mm | ||
| 39 | 241909 / 538241909 | Screw | ||
| 40 | 235642 / 538235642 | Nut M5 | ||
| 41 | 241346 / 538241346 | Washer | ||
| 42 | 242006 / 538242006 | Clutch Spacer | ||
| 43 | 240309 / 538240309 | Plate Oil Cap | ||
| 44 | 240363 / 538240363 | Chain Brake | ||
| 45 | 240286 / 538240286 | Spring | ||
| 46 | 235802 / 538235802 | Screw M5 X 14 TCE | ||
| 47 | 241882 / 538241882 | Oil Pump Screw | ||
| 48 | 240920 / 538240920 | Fuel Tank Assy | ||
| 49 | 240300 / 538240300 | Fuel Tank | ||
| 50 | 240868 / 538240868 | Hose Fuel | ||
| 51 | 235675 / 538235675 | Fueltank Grommet | ||
| 52 | 240452 / 538240452 | Pick Up Fuel | ||
| 53 | 227582 / 538227582 | Vent Filter | ||
| 54 | 229716 / 538229716 | Breather Pipe Oil Tank | ||
| 55 | 236997 / 538236997 | M5X30 Screw | ||
| 56 | 241883 / 538241883 | Oil Pump Assy | ||
| 57 | 241885 / 538241885 | Oil Pump Piston Kit (S5E) | ||
| 58 | 241895 / 538241895 | Pipe Joint | ||
| 59 | 241896 / 538241896 | Tube Oil Pump | ||
| 60 | 225063 / 538225063 | Bumper Cut Control | ||
| 61 | 242004 / 538242004 | Clutch Kit | ||
| 62 | 240926 / 538240926 | Spring | ||
| 63 | 227359 / 538227359 | Shoe-Clutch | ||
| 64 | 242005 / 538242005 | Rotor Cluctch | ||
| 65 | 235076 / 538235076 | Brake Spring | ||
| 66 | 235075 / 538235075 | Latch Pivot | ||
| 67 | 94006 / 538094006 | Brake Latch |
