McCulloch Promac-543
McCulloch Promac-543

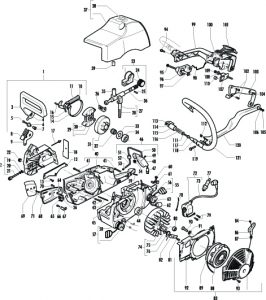

Body
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 503452101 / 503452101 | Clutch Cover Assembly | ||
| 2 | 503593701 / 503452101 | Chain Over Assembly | ||
| 3 | 503452701 / 503452101 | Brake Lever Assembly | ||
| 4 | 503588701 / 503452101 | Spacer | ||
| 5 | 725529156 / 503452101 | Screw M4X12 | ||
| 6 | 503409601 / 503452101 | Bushing | ||
| 7 | 503409701 / 503452101 | T.Bushing | ||
| 8 | 503409801 / 503409801 | Spring | ||
| 9 | 503409901 / 503409901 | Spacer/Washer | ||
| 10 | 503408701 / 503408701 | Screw | ||
| 11 | 501875401 / 501875401 | Spring | ||
| 12 | 503581801 / 503581801 | Brake Spring Cover | ||
| 13 | 503212810 / 503212810 | Screw | ||
| 14 | 503452802 / 503452802 | Brake Band | ||
| 15 | 721425250 / 721425250 | Elastic Pin | ||
| 16 | 720126950 / 720126950 | Pin | ||
| 17 | 501608201 / 501608201 | Rivet | ||
| 18 | 503452401 / 503452401 | Grommet | ||
| 19 | 505267895 / 505267895 | Puller Unit | ||
| 20 | 227504 / 538227504 | Benzing D.5 | ||
| 21 | 242560 / 538242560 | Chain Tensioner Screw | ||
| 22 | 227762 / 538227762 | M8 Nut | ||
| 23 | 503118502 / 503118502 | Oil Pump Kit | ||
| 24 | 242650 / 538242650 | Pump Drive Wheel | ||
| 25 | 721121040 / 721121040 | Pin | ||
| 26 | 503116501 / 503116501 | Oil Pump Bracket | ||
| 27 | 503101601 / 503101601 | Suction Hose Ass'y | ||
| 28 | 505315181 / 505315181 | Oil Filter | ||
| 29 | 501455403 / 501455403 | Clutch Assembly | ||
| 30 | 501456101 / 501456101 | Spring | ||
| 31 | 503088702 / 503088702 | Clutch Drum | ||
| 32 | 503253401 / 503253401 | Needle Bearing | ||
| 33 | 503230105 / 503230105 | Washer | ||
| 34 | 505275719 / 505275719 | Retaining Ring | ||
| 35 | 505310745 / 505310745 | Oil Pump Joint | ||
| 36 | 503116102 / 503116102 | Oil Pump Piston Ass'y | ||
| 37 | 242674 / 538242674 | Engine Cover Ass'y | ||
| 38 | 503227001 / 503227001 | Stotted Barrel M5 | ||
| 39 | 505310751 / 505310751 | Rubber | ||
| 40 | 503123105 / 503123105 | Crankcase Kit | ||
| 41 | 503200235 / 503200235 | Screw | ||
| 42 | 505220937 / 505220937 | Stud Bolt | ||
| 43 | 501839304 / 501839304 | Hose | ||
| 44 | 505275719 / 505275719 | Retaining Ring | ||
| 45 | 503153701 / 503153701 | Kit Gasket | ||
| 46 | 503593601 / 503593601 | Tank Assembly | ||
| 47 | 503571402 / 503571402 | Seal | ||
| 48 | 503568801 / 503568801 | Fuel Tank Expansion | ||
| 49 | 229791 / 538229791 | Screw | ||
| 50 | 242525 / 538242525 | 125Mm Hose | ||
| 51 | 503164001 / 503164001 | Valve | ||
| 52 | 242524 / 538242524 | 60Mm Hose | ||
| 53 | 504357201 / 504357201 | Hose Filter | ||
| 54 | 503226201 / 503226201 | Treat, Plate | ||
| 55 | 503125003 / 503125003 | Tank Cap Assembly | ||
| 56 | 740440700 / 740440700 | Cap Gasket | ||
| 57 | 503125403 / 503125403 | Oil Tank Cap Ass'y | ||
| 58 | 740481802 / 740481802 | Oil Cap Gasket | ||
| 59 | 721426020 / 721426020 | Pin | ||
| 60 | 503203701 / 503203701 | Screw | ||
| 61 | 505279205 / 505279205 | Stop Switch | ||
| 62 | 503443201 / 503443201 | Fuel Filter | ||
| 63 | 242523 / 538242523 | 160Mm Hose | ||
| 64 | 503200235 / 503200235 | Screw | ||
| 65 | 721613801 / 721613801 | Split Pin | ||
| 66 | 725532955 / 725532955 | Screw | ||
| 67 | 501686801 / 501686801 | Chain Catcher | ||
| 68 | 505269307 / 505269307 | Guide Plate | ||
| 69 | 505269295 / 505269295 | Guide Plate | ||
| 70 | 503202520 / 503202520 | Screw | ||
| 71 | 503212810 / 503212810 | Screw | ||
| 72 | 503901201 / 503901201 | Ignition Module | ||
| 73 | 501531601 / 501531601 | Cable | ||
| 74 | 503521801 / 503521801 | Flywheel Ass'y | ||
| 75 | 503818101 / 503818101 | Spring | ||
| 76 | 503230042 / 503230042 | Washer | ||
| 77 | 240010 / 538240010 | Rcj 7J S. Plug | ||
| 78 | 503129701 / 503129701 | Lead | ||
| 79 | 503202520 / 503202520 | Screw | ||
| 80 | 503220401 / 503220401 | Nut | ||
| 81 | 501819903 / 501819903 | Screw | ||
| 82 | 503710203 / 503710203 | Pawl | ||
| 83 | 242679 / 538242679 | Starter Ass'y | ||
| 84 | 505305125 / 505305125 | Starter Rope | ||
| 86 | 503127901 / 503127901 | Starter Handle | ||
| 87 | 501630601 / 501630601 | Rope Bushing | ||
| 88 | 505295126 / 505295126 | Spring | ||
| 89 | 505303735 / 505303735 | Starter Pulley | ||
| 90 | 229791 / 538229791 | Screw | ||
| 91 | 227259 / 538227259 | Washer | ||
| 92 | 242744 / 538242744 | Baffle Fan | ||
| 93 | 503200220 / 503200220 | Screw | ||
| 94 | 503200230 / 503200230 | Screw | ||
| 95 | 503200250 / 503200250 | Screw | ||
| 96 | 503564901 / 503564901 | A/V Absorber | ||
| 97 | 505267886 / 505267886 | Spacer | ||
| 98 | 503538401 / 503538401 | Rod Throttle | ||
| 99 | 503126201 / 503126201 | R.H Handle | ||
| 100 | 503495604 / 503495604 | Saftey Trigger | ||
| 101 | 503406904 / 503406904 | Latch | ||
| 102 | 503202516 / 503202516 | Screw | ||
| 103 | 503126502 / 503126502 | Half Handle Right | ||
| 104 | 503202516 / 503202516 | Screw | ||
| 105 | 732211401 / 732211401 | Nut | ||
| 106 | 503230011 / 503230011 | Washer | ||
| 107 | 503486102 / 503486102 | Shock Absorber | ||
| 108 | 503230011 / 503230011 | Washer | ||
| 109 | 229208 / 538229208 | Nut | ||
| 110 | 503119001 / 503119001 | Rubber | ||
| 111 | 503230011 / 503230011 | Washer | ||
| 112 | 503226501 / 503226501 | Nut | ||
| 113 | 503119201 / 503119201 | Saftey Strip | ||
| 114 | 503230035 / 503230035 | Washer | ||
| 115 | 505279537 / 505279537 | Plastic Tube | ||
| 116 | 505279536 / 505279536 | Spring | ||
| 117 | 503200220 / 503200220 | Screw | ||
| 118 | 503200220 / 503200220 | Spring Tension Adjuster | ||
| 119 | 503200240 / 503200240 | Screw | ||
| 120 | 503127301 / 503127301 | Arm | ||
| 121 | 503127404 / 503127404 | Front Handle |

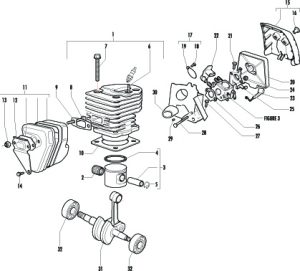

Engine
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 503609172 / 503609172 | Cilynder / Piston Kit | ||
| 2 | 501451601 / 501451601 | Needle Bearing | ||
| 3 | 503608171 / 503608171 | Piston Kit | ||
| 4 | 503289014 / 503289014 | Piston Ring | ||
| 5 | 737441000 / 737441000 | Retaining Ring | ||
| 6 | 503208006 / 503208006 | Stud Bolt | ||
| 7 | 503200220 / 503200220 | Screw | ||
| 8 | 503218201 / 503218201 | Screw | ||
| 9 | 503102303 / 503102303 | Gasket | ||
| 10 | 503162103 / 503162103 | Gasket | ||
| 11 | 503125601 / 503125601 | Muffler | ||
| 12 | 503127501 / 503127501 | Muffler Support | ||
| 13 | 229208 / 538229208 | M5 Nut | ||
| 14 | 503200212 / 503200212 | Screw | ||
| 15 | 242675 / 538242675 | Air Filter Cover Ass'y | ||
| 16 | 503227001 / 503227001 | Slotted Barrel M5 | ||
| 17 | 503150801 / 503150801 | Heat Shield | ||
| 18 | 505269314 / 505269314 | Valve Gate | ||
| 19 | 503212713 / 503212713 | Screw | ||
| 20 | 503507401 / 503507401 | Air Filter | ||
| 21 | 503202512 / 503202512 | Screw | ||
| 22 | 505279203 / 505279203 | Screw Driver Guide | ||
| 23 | 506034301 / 506034301 | Choke Control Lever | ||
| 24 | 229208 / 538229208 | M5 Nut | ||
| 25 | 503507101 / 503507101 | Air Filter Flange | ||
| 26 | 503490701 / 503490701 | Gasket | ||
| 27 | 503200220 / 503200220 | Screw | ||
| 28 | 725234150 / 725234150 | Screw | ||
| 29 | 505310751 / 505310751 | Rubber | ||
| 30 | 503161602 / 503161602 | Induction Pipe | ||
| 31 | 503573805 / 503573805 | Crankshaft | ||
| 32 | 738220225 / 738220225 | Bearing |
Carburetor
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 503281504 / 503281504 | Carb. | |||
| 1 | 229191 / 538229191 | Set of Gasket | ||
| 2 | 247260 / 538247260 | Major Kit |
