McCulloch Promac 72
McCulloch Promac 72

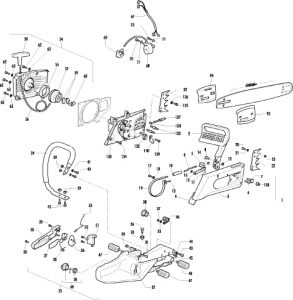

Body
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 240056 / 538240056 | Clutch Cover Assembly | ||
| 2 | 227941 / 538227941 | T 72 Brake Lever | ||
| 3 | 241196 / 538241196 | Clutch Cover | ||
| 4 | 227943 / 538227943 | Guard | ||
| 5 | 227349 / 538227349 | Brake Nut | ||
| 6 | 227350 / 538227350 | Pin | ||
| 7 | 227351 / 538227351 | Brake Lever Pin | ||
| 8 | 227352 / 538227352 | Pin | ||
| 9 | 227353 / 538227353 | Rod | ||
| 10 | 240929 / 538240929 | Retaining Spring | ||
| 11 | 240690 / 538240690 | T 51 Brake Spring | ||
| 12 | 227521 / 538227521 | 2.9X19 Screw | ||
| 13 | 227523 / 538227523 | Pin | ||
| 14 | 227524 / 538227524 | Seeger | ||
| 15 | 235367 / 538235367 | Benzing D.4 | ||
| 16 | 235811 / 538235811 | Benzing D.3,2 | ||
| 17 | 229791 / 538229791 | 4,2X9,5Mm Screw | ||
| 18 | 235612 / 538235612 | Ø 4X9X0,8 Washer | ||
| 19 | 227942 / 538227942 | Strap | ||
| 20 | 235207 / 538235207 | M5X14 Screw | ||
| 21 | 227626 / 538227626 | Washer D.5 | ||
| 22 | 241169 / 538241169 | Spike | ||
| 23 | 229208 / 538229208 | M5 Nut | ||
| 24 | 227992 / 538227992 | Handle Assembly | ||
| 25 | 242330 / 538242330 | Rear Handle Assembly | ||
| 26 | 227441 / 538227441 | Gas Trigger | ||
| 27 | 227442 / 538227442 | Safety Trigger | ||
| 28 | 227443 / 538227442 | Trigger Spring | ||
| 29 | 240862 / 538240862 | Screw | ||
| 30 | 242332 / 538242332 | Trigger Cover | ||
| 31 | 242472 / 538242472 | Fuel Tube | ||
| 32 | 503443201 / 503443201 | Pick Up Fuel | ||
| 33 | 235675 / 538235675 | Tank Grommet | ||
| 34 | 229524 / 538229524 | Bolt M5 10X10X5 | ||
| 35 | 227259 / 538227259 | Washer D.5 | ||
| 36 | 227582 / 538227582 | Vent Filter | ||
| 37 | 229208 / 538229208 | M5 Nut | ||
| 38 | 229981 / 538229981 | Av Assembly | ||
| 39 | 229524 / 538229524 | M5 10X10X5 Nut | ||
| 40 | 235802 / 538235802 | M5 X 14 Screw | ||
| 41 | 235248 / 538235248 | Ø.5X10X1 Washer | ||
| 42 | 229561 / 538229561 | M5 X 16 Screw | ||
| 43 | 236933 / 538236933 | M6X18 Screw | ||
| 44 | 236936 / 538236936 | Washer D.6 | ||
| 45 | 241147 / 538241147 | M5 X 16 Screw | ||
| 46 | 241148 / 538241148 | Spring | ||
| 47 | 241207 / 538241207 | Spring | ||
| 48 | 241208 / 538241208 | Spring | ||
| 49 | 227508 / 538227508 | Fuel Cap Assembly | ||
| 50 | 227420 / 538227420 | Fuel Cap Seal | ||
| 51 | 242334 / 538242334 | Screwdriver Guide | ||
| 52 | 240862 / 538240862 | Screw | ||
| 53 | 242469 / 538242469 | Gas Lever | ||
| 54 | 240058 / 538240058 | Starter Assembly | ||
| 55 | 240639 / 538240639 | Starter Spring | ||
| 56 | 229608 / 538229608 | Starter Cord | ||
| 57 | 240638 / 538240638 | Starter Pulley | ||
| 58 | 240884 / 538240884 | Starter Handle | ||
| 59 | 241083 / 538241083 | Starter Pawl | ||
| 60 | 241157 / 538241157 | Shield | ||
| 62 | 229712 / 538229712 | M5X16 Screw | ||
| 63 | 235248 / 538235248 | Washer D.5 | ||
| 67 | 242470 / 538242470 | Wire Assembly | ||
| 68 | 240062 / 538240062 | Ignition Module | ||
| 69 | 227005 / 538227005 | Cap Plug | ||
| 70 | 235806 / 538235806 | M5X20 Screw | ||
| 71 | 235248 / 538235248 | Washer D.5 | ||
| 94 | 227979 / 538227979 | Plate Bar | ||
| 95 | 227980 / 538227980 | Spacer | ||
| 130 | 247895 / 538247895 | Clutch Crankcase | ||
| 132 | 229451 / 538229451 | 17X28X4,5/5 Ring | ||
| 133 | 227370 / 538227370 | Stud Bolt | ||
| 134 | 241146 / 538241146 | M6X20 Screw | ||
| 135 | 235239 / 538235239 | M5X20 Screw | ||
| 136 | 227626 / 538227626 | Washer D.5 | ||
| 137 | 227997 / 538227997 | Chain Tensioner Screw | ||
| 138 | 227366 / 538227366 | Chain Tensioner Nut | ||
| 139 | 241146 / 538241146 | M6X20 Screw | ||
| 140 | 227990 / 538227990 | Chain Catcher | ||
| 158 | 227762 / 538227762 | M8 Nut |

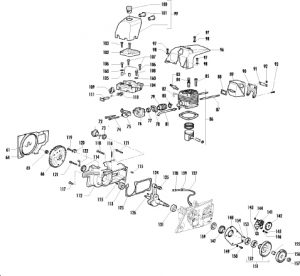

Engine Casing
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 61 | 241156 / 538241156 | Pressure Spring | ||
| 64 | 227958 / 538227958 | Air Conveyor | ||
| 65 | 227762 / 538227762 | M 8 Nut | ||
| 66 | 227976 / 538227976 | Flyweel | ||
| 72 | 227507 / 538227507 | Oil Cap Assembly | ||
| 73 | 227459 / 538227459 | Oil Cap Seal | ||
| 74 | 229399 / 538229399 | M 5X70 Screw | ||
| 75 | 227965 / 538227965 | Manifold | ||
| 76 | Cylinder/Piston | |||
| 77 | 229397 / 538229397 | Flange | ||
| 78 | 229396 / 538229396 | Suction Flange | ||
| 79 | 229017 / 538229017 | Suction Tube | ||
| 80 | 229395 / 538229395 | Clamp | ||
| 81 | 229718 / 538229718 | Branch Pipe | ||
| 82 | 218865 / 538218865 | Clip | ||
| 83 | 92878 / 538092878 | RDJ6J Spark Plug | ||
| 84 | 94273 / 538094273 | Decompressor | ||
| 85 | 235214 / 538235214 | M4X20 Screw | ||
| 86 | Carburetor | |||
| 87 | 227057 / 538227057 | Stud Bolt | ||
| 88 | 229502 / 538229502 | Muffler Gasket | ||
| 89 | 241257 / 538241257 | Muffler Assembly | ||
| 90 | 229501 / 538229501 | Muffler Holder | ||
| 91 | 227275 / 538227275 | Shield | ||
| 92 | 235216 / 538235216 | M5 Nut | ||
| 93 | 229563 / 538229563 | M5X10 Screw | ||
| 96 | 242548 / 538242548 | Engine Cover Assembly | ||
| 97 | 229712 / 538229712 | M5X16 Screw | ||
| 98 | 235248 / 538235248 | Washer D.5 | ||
| 99 | 242550 / 538242550 | Air Filter Assembly | ||
| 100 | 241089 / 538241089 | Air Filter Release Lever | ||
| 101 | 229525 / 538229525 | Suction Hose | ||
| 102 | 227561 / 538227561 | Air Filter | ||
| 103 | 227458 / 538227458 | M5X21 Modified Screw | ||
| 104 | 247877 / 538247877 | Air Filter Box Assembly | ||
| 105 | 227971 / 538227971 | Bushing | ||
| 106 | 227563 / 538227563 | M 5X16 Screw | ||
| 107 | 235205 / 538235205 | 4,2X19 Screw | ||
| 108 | 241090 / 538241090 | Filter Cover Bracket | ||
| 109 | 242439 / 538242439 | Ignition Switch | ||
| 110 | 242439 / 538242439 | Dust Shield | ||
| 111 | 229377 / 538229377 | Air Lever Assembly | ||
| 112 | 247894 / 538247894 | Flywheel Crankcase Assembly | ||
| 113 | 229449 / 538229449 | Bearing 15X35X11 (6202) | ||
| 114 | 229452 / 538229452 | 15X26X4/4,5 Ring | ||
| 115 | 235221 / 538235221 | D.4X16 Pin | ||
| 116 | 236728 / 538236728 | Cotter Pin | ||
| 117 | 241146 / 538241146 | M6X20 Screw | ||
| 118 | 241145 / 538241145 | M6X45 Modified Screw | ||
| 120 | 229560 / 538229560 | Clamp | ||
| 121 | 235530 / 538235530 | M5 X 35 Screw | ||
| 122 | 229559 / 538229559 | Clamp | ||
| 123 | 227975 / 538227975 | Crankcase Seal | ||
| 124 | 240060 / 538240060 | Engine Shaft Assembly | ||
| 125 | 229453 / 538229453 | 12X16X16 Needle Bearing | ||
| 126 | 227631 / 538227631 | Key | ||
| 127 | 227461 / 538227461 | Oil Tube | ||
| 128 | 227464 / 538227464 | Oil Filter Assembly | ||
| 129 | 227527 / 538227527 | O-Ring | ||
| 131 | 229450 / 538229450 | Bearing 17X40X12 | ||
| 141 | 227530 / 538227530 | Oil Pump Assembly | ||
| 142 | 227385 / 538227385 | Driven Gear | ||
| 143 | 227383 / 538227383 | Oil Pump Adjuster | ||
| 144 | 235432 / 538235432 | 2018 O-Ring | ||
| 145 | 229861 / 538229861 | M4X14 Screw | ||
| 146 | 227630 / 538227630 | Washer D.4 | ||
| 147 | 227387 / 538227387 | Drive Gear | ||
| 148 | 227970 / 538227970 | Oil Pump Cover | ||
| 149 | 227627 / 538227627 | Washer D.4 | ||
| 150 | 227611 / 538227611 | M4X12 Screw | ||
| 151 | 240054 / 538240054 | Clutch Drum Assembly | ||
| 152 | 227547 / 538227547 | Pinion | ||
| 153 | 227389 / 538227389 | Spacer | ||
| 154 | 227548 / 538227548 | 2,5X14 Pin | ||
| 155 | 227329 / 538227329 | Needle Bearings | ||
| 156 | 240055 / 538240055 | Clutch Assembly | ||
| 157 | 241247 / 538241247 | M10 Nut | ||
| 159 | 227388 / 538227388 | Spacer | ||
| 160 | 235248 / 538235248 | D.5X10X1 Washer |
Carburetor
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 229400 / 538229400 | WJ23 Carburettor | |||
| 1 | 229925 / 538229925 | Major Repair Kit | ||
| 2 | 237211 / 538237211 | Gasket+Diaph JW11 Kit | ||
| 3 | 229927 / 538229927 | Spring Needle | ||
| 4 | 229928 / 538229928 | Idle Kit WJ23 | ||
| 5 | 229929 / 538229929 | Idle L WJ23 | ||
| 6 | 229930 / 538229930 | H/L Carb.Needle |
Engine
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 247893 / 538247893 | Cylinder/Piston Kit | ||
| 2 | 227974 / 538227974 | Cylinder Gasket | ||
| 3 | 229543 / 538229543 | Piston Kit | ||
| 4 | 229544 / 538229544 | Retaining Ring | ||
| 5 | 229070 / 538229070 | Piston Ring | ||
| 6 | 229515 / 538229515 | Pulse Hose | ||
| 7 | 227634 / 538227634 | Aluminum Washer D.5 |
